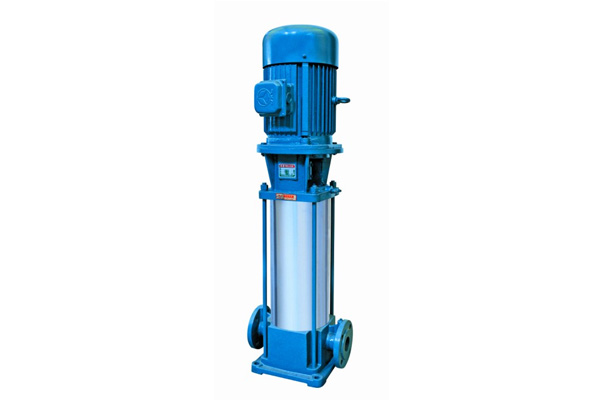

GDL型立式多級泵產品概述
GDL型立式多級管道離心泵是我司在國外較好泵型之基礎上結合用戶的使用要求及消防有關標準，并根據JB/TQ6435-92標準設計制造的新一代產品。
水泵吸入、排出口位于同一直線上。轉子部件由軸、葉輪、葉輪擋套、軸套等零件組成，進水段、中段、出水段用拉緊螺栓聯結。軸封采用機械密封，用平衡室的壓力水進行潤滑和冷卻。是各大行業冷熱水或物理化學性質類似于水等液體輸送的較佳泵型。
新光明產品全部采用計算機設計和優化處理，公司擁有雄厚的技術力量、豐富的生產經驗和完善的檢測手段，從而保證產品質量的穩定可靠。
GDL型立式多級泵產品特點
1、水力模型先進：效率高，性能范圍廣。
2、安裝、維修方便：管道式安裝、進出口能象閥門一樣安裝在管道的任何位置及任何方向，安裝維修為方便。
3、外形美觀：采用良好不銹鋼外套，外形美觀。
4、更少的運行、維修費用：采用良好機械密封，耐磨損、無泄漏、使用壽命長，故障率低，具有更少的運行維修費用。
5、部件、降低噪音：的水力部件設計，良好的過流性能，較大地減少流動噪音。
6、立式結構，占地面積小。

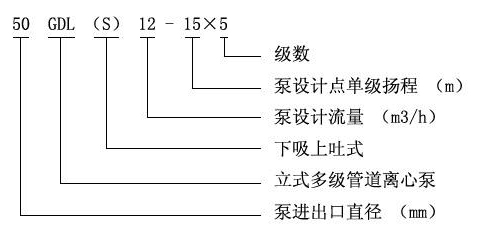

GDL型立式多級泵型號意義
GDL型立式多級泵型號參數
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
25GDL2-12 | 3 | 2 | 36 | 2900 | 1.1 | 30 | 2.9 | 58 |
25GDL2-12 | 4 | 2 | 48 | 2900 | 1.1 | 30 | 2.9 | 62 |
25GDL2-12 | 5 | 2 | 60 | 2900 | 2 | 30 | 2.9 | 68 |
25GDL2-12 | 6 | 2 | 72 | 2900 | 2 | 30 | 2.9 | 72 |
25GDL2-12 | 7 | 2 | 84 | 2900 | 2 | 30 | 2.9 | 78 |
25GDL2-12 | 8 | 2 | 96 | 2900 | 2.2 | 30 | 2.9 | 82 |
25GDL2-12 | 9 | 2 | 108 | 2900 | 2 | 30 | 2.9 | 86 |
25GDL2-12 | 10 | 2 | 120 | 2900 | 3 | 30 | 2.9 | 98 |
25GDL2-12 | 11 | 2 | 132 | 2900 | 3 | 30 | 2.9 | 102 |
25GDL2-12 | 12 | 2 | 144 | 2900 | 3 | 30 | 2.9 | 102 |
25GDL2-12 | 13 | 2 | 156 | 2900 | 4 | 30 | 2.9 | 110 |
25GDL2-12 | 14 | 2 | 168 | 2900 | 4 | 30 | 2.9 | 110 |
25GDL2-12 | 15 | 2 | 180 | 2900 | 4 | 30 | 2.9 | 110 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
25GDL4-11 | 3 | 4 | 33 | 2900 | 1.1 | 42 | 2.9 | 58 |
25GDL4-11 | 4 | 4 | 44 | 2900 | 1.5 | 42 | 2.9 | 65 |
25GDL4-11 | 5 | 4 | 55 | 2900 | 2.2 | 42 | 2.9 | 72 |
25GDL4-11 | 6 | 4 | 66 | 2900 | 2.2 | 42 | 2.9 | 76 |
25GDL4-11 | 7 | 4 | 77 | 2900 | 3 | 42 | 2.9 | 86 |
25GDL4-11 | 8 | 4 | 88 | 2900 | 3 | 42 | 2.9 | 90 |
25GDL4-11 | 9 | 4 | 99 | 2900 | 3 | 42 | 2.9 | 94 |
25GDL4-11 | 10 | 4 | 110 | 2900 | 4 | 42 | 2.9 | 110 |
25GDL4-11 | 11 | 4 | 121 | 2900 | 4 | 42 | 2.9 | 114 |
25GDL4-11 | 12 | 4 | 132 | 2900 | 4 | 42 | 2.9 | |
25GDL4-11 | 13 | 4 | 143 | 2900 | 4 | 42 | 2.9 | |
25GDL4-11 | 14 | 4 | 154 | 2900 | 5.5 | 42 | 2.9 | |
25GDL4-11 | 15 | 4 | 165 | 2900 | 5.5 | 42 | 2.9 | |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
40GDL6-12 | 3 | 6 | 36 | 2900 | 1.5 | 52 | 2.9 | 72 |
40GDL6-12 | 4 | 6 | 48 | 2900 | 2.2 | 52 | 2.9 | 78 |
40GDL6-12 | 5 | 6 | 60 | 2900 | 2.2 | 52 | 2.9 | 82 |
40GDL6-12 | 6 | 6 | 72 | 2900 | 3 | 52 | 2.9 | 92 |
40GDL6-12 | 7 | 6 | 84 | 2900 | 3 | 52 | 2.9 | 96 |
40GDL6-12 | 8 | 6 | 96 | 2900 | 4 | 52 | 2.9 | 112 |
40GDL6-12 | 9 | 6 | 108 | 2900 | 4 | 52 | 2.9 | 116 |
40GDL6-12 | 10 | 6 | 120 | 2900 | 4 | 52 | 2.9 | 120 |
40GDL6-12 | 11 | 6 | 132 | 2900 | 5.5 | 52 | 2.9 | 140 |
40GDL6-12 | 12 | 6 | 144 | 2900 | 5.5 | 52 | 2.9 | |
40GDL6-12 | 13 | 6 | 156 | 2900 | 7.5 | 52 | 2.9 | |
40GDL6-12 | 14 | 6 | 168 | 2900 | 7.5 | 52 | 2.9 | |
40GDL6-12 | 15 | 6 | 180 | 2900 | 7.5 | 52 | 2.9 | |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
50GDL12-15 | 2 | 12 | 30 | 2900 | 2.2 | 57 | 3.5 | 113 |
50GDL12-15 | 3 | 12 | 45 | 2900 | 3 | 57 | 3.5 | 129 |
50GDL12-15 | 4 | 12 | 60 | 2900 | 4 | 57 | 3.5 | 149 |
50GDL12-15 | 5 | 12 | 75 | 2900 | 5.5 | 57 | 3.5 | 181 |
50GDL12-15 | 6 | 12 | 90 | 2900 | 5.5 | 57 | 3.5 | 190 |
50GDL12-15 | 7 | 12 | 105 | 2900 | 7.5 | 57 | 3.5 | 204 |
50GDL12-15 | 8 | 12 | 120 | 2900 | 7.5 | 57 | 3.5 | 212 |
50GDL12-15 | 9 | 12 | 135 | 2900 | 11 | 57 | 3.5 | 265 |
50GDL12-15 | 10 | 12 | 150 | 2900 | 11 | 57 | 3.5 | 273 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
50GDL12-25 | 1 | 12 | 25 | 2900 | 2.2 | 57 | 3.5 | 105 |
50GDL12-25 | 2 | 12 | 50 | 2900 | 4 | 57 | 3.5 | 119 |
50GDL12-25 | 3 | 12 | 75 | 2900 | 5.5 | 57 | 3.5 | 138 |
50GDL12-25 | 4 | 12 | 100 | 2900 | 7.5 | 57 | 3.5 | 157 |
50GDL12-25 | 5 | 12 | 125 | 2900 | 11 | 57 | 3.5 | 184 |
50GDL12-25 | 6 | 12 | 150 | 2900 | 11 | 57 | 3.5 | 191 |
50GDL12-25 | 7 | 12 | 175 | 2900 | 15 | 57 | 3.5 | 210 |
50GDL12-25 | 8 | 12 | 200 | 2900 | 15 | 57 | 3.5 | 229 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
50GDL18-15 | 2 | 18 | 30 | 2900 | 3 | 63 | 4 | 122 |
50GDL18-15 | 3 | 18 | 45 | 2900 | 4 | 63 | 4 | 142 |
50GDL18-15 | 4 | 18 | 60 | 2900 | 5.5 | 63 | 4 | 175 |
50GDL18-15 | 5 | 18 | 75 | 2900 | 7.5 | 63 | 4 | 189 |
50GDL18-15 | 6 | 18 | 90 | 2900 | 7.5 | 63 | 4 | 198 |
50GDL18-15 | 7 | 18 | 105 | 2900 | 11 | 63 | 4 | 252 |
50GDL18-15 | 8 | 18 | 120 | 2900 | 11 | 63 | 4 | 261 |
50GDL18-15 | 9 | 18 | 135 | 2900 | 15 | 63 | 4 | 280 |
50GDL18-15 | 10 | 18 | 150 | 2900 | 15 | 63 | 4 | 289 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
50GDL18-24 | 1 | 18 | 24 | 2900 | 3 | 63 | 4 | 122 |
50GDL18-24 | 2 | 18 | 48 | 2900 | 4 | 63 | 4 | 142 |
50GDL18-24 | 3 | 18 | 72 | 2900 | 7.5 | 63 | 4 | 175 |
50GDL18-24 | 4 | 18 | 96 | 2900 | 11 | 63 | 4 | 230 |
50GDL18-24 | 5 | 18 | 120 | 2900 | 11 | 63 | 4 | 247 |
50GDL18-24 | 6 | 18 | 144 | 2900 | 15 | 63 | 4 | 265 |
50GDL18-24 | 7 | 18 | 168 | 2900 | 18.5 | 63 | 4 | 274 |
50GDL18-24 | 8 | 18 | 192 | 2900 | 22 | 63 | 4 | 301 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
65GDL24-12 | 2 | 24 | 24 | 2900 | 3 | 63 | 4 | 122 |
65GDL24-12 | 3 | 24 | 36 | 2900 | 4 | 63 | 4 | 142 |
65GDL24-12 | 4 | 24 | 48 | 2900 | 5.5 | 63 | 4 | 175 |
65GDL24-12 | 5 | 24 | 60 | 2900 | 7.5 | 63 | 4 | 189 |
65GDL24-12 | 6 | 24 | 72 | 2900 | 7.5 | 63 | 4 | 252 |
65GDL24-12 | 7 | 24 | 84 | 2900 | 11 | 63 | 4 | 261 |
65GDL24-12 | 8 | 24 | 96 | 2900 | 11 | 63 | 4 | 280 |
65GDL24-12 | 9 | 24 | 108 | 2900 | 15 | 63 | 4 | 289 |
65GDL24-12 | 10 | 24 | 120 | 2900 | 15 | 63 | 4 | 298 |
65GDL24-12 | 11 | 24 | 132 | 2900 | 15 | 63 | 4 | 317 |
65GDL24-12 | 12 | 24 | 144 | 2900 | 18.5 | 63 | 4 | 346 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
65GDL24-24 | 1 | 24 | 24 | 2900 | 3 | 63 | 4 | 122 |
65GDL24-24 | 2 | 24 | 48 | 2900 | 5.5 | 63 | 4 | 175 |
65GDL24-24 | 3 | 24 | 72 | 2900 | 7.5 | 63 | 4 | 189 |
65GDL24-24 | 4 | 24 | 96 | 2900 | 11 | 63 | 4 | 262 |
65GDL24-24 | 5 | 24 | 120 | 2900 | 15 | 63 | 4 | 317 |
65GDL24-24 | 6 | 24 | 144 | 2900 | 18.5 | 63 | 4 | 346 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
80GDL36-12 | 2 | 36 | 24 | 2900 | 4 | 71 | 4.2 | 193 |
80GDL36-12 | 3 | 36 | 36 | 2900 | 5.5 | 71 | 4.2 | 227 |
80GDL36-12 | 4 | 36 | 48 | 2900 | 7.5 | 71 | 4.2 | 244 |
80GDL36-12 | 5 | 36 | 60 | 2900 | 11 | 71 | 4.2 | 292 |
80GDL36-12 | 6 | 36 | 72 | 2900 | 11 | 71 | 4.2 | 302 |
80GDL36-12 | 7 | 36 | 84 | 2900 | 15 | 71 | 4.2 | 322 |
80GDL36-12 | 8 | 36 | 96 | 2900 | 15 | 71 | 4.2 | 332 |
80GDL36-12 | 9 | 36 | 108 | 2900 | 18.5 | 71 | 4.2 | 365 |
80GDL36-12 | 10 | 36 | 120 | 2900 | 18.5 | 71 | 4.2 | 375 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
80GDL36-24 | 1 | 36 | 24 | 2900 | 4 | 71 | 4.2 | 193 |
80GDL36-24 | 2 | 36 | 48 | 2900 | 7.5 | 71 | 4.2 | 193 |
80GDL36-24 | 3 | 36 | 72 | 2900 | 11 | 71 | 4.2 | 227 |
80GDL36-24 | 4 | 36 | 96 | 2900 | 15 | 71 | 4.2 | 244 |
80GDL36-24 | 5 | 36 | 120 | 2900 | 18.5 | 71 | 4.2 | 292 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
80GDL54-14 | 2 | 54 | 28 | 2900 | 7.5 | 73 | 4 | 218 |
80GDL54-14 | 3 | 54 | 42 | 2900 | 11 | 73 | 4 | 267 |
80GDL54-14 | 4 | 54 | 56 | 2900 | 15 | 73 | 4 | 287 |
80GDL54-14 | 5 | 54 | 70 | 2900 | 18.5 | 73 | 4 | 320 |
80GDL54-14 | 6 | 54 | 84 | 2900 | 18.5 | 73 | 4 | 330 |
80GDL54-14 | 7 | 54 | 98 | 2900 | 22 | 73 | 4 | 373 |
80GDL54-14 | 8 | 54 | 112 | 2900 | 30 | 73 | 4 | 400 |
80GDL54-14 | 9 | 54 | 126 | 2900 | 30 | 73 | 4 | 421 |
80GDL54-14 | 10 | 54 | 140 | 2900 | 37 | 73 | 4 | 432 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
80GDL54-28 | 1 | 54 | 28 | 2900 | 7.5 | 73 | 4 | 218 |
80GDL54-28 | 2 | 54 | 56 | 2900 | 15 | 73 | 4 | 287 |
80GDL54-28 | 3 | 54 | 84 | 2900 | 18.5 | 73 | 4 | 320 |
80GDL54-28 | 4 | 54 | 112 | 2900 | 30 | 73 | 4 | 453 |
80GDL54-28 | 5 | 54 | 140 | 2900 | 37 | 73 | 4 | 493 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
100GDL72-14 | 2 | 72 | 28 | 2900 | 11 | 73 | 4.5 | 276 |
100GDL72-14 | 3 | 72 | 42 | 2900 | 15 | 73 | 4.5 | 298 |
100GDL72-14 | 4 | 72 | 56 | 2900 | 18.5 | 73 | 4.5 | 336 |
100GDL72-14 | 5 | 72 | 70 | 2900 | 22 | 73 | 4.5 | 381 |
100GDL72-14 | 6 | 72 | 84 | 2900 | 30 | 73 | 4.5 | 453 |
100GDL72-14 | 7 | 72 | 98 | 2900 | 30 | 73 | 4.5 | 466 |
100GDL72-14 | 8 | 72 | 112 | 2900 | 37 | 73 | 4.5 | 493 |
100GDL72-14 | 9 | 72 | 126 | 2900 | 37 | 73 | 4.5 | 582 |
100GDL72-14 | 10 | 72 | 140 | 2900 | 45 | 73 | 4.5 | 595 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
100GDL72-28 | 1 | 72 | 28 | 2900 | 11 | 73 | 4.5 | 276 |
100GDL72-28 | 2 | 72 | 56 | 2900 | 18.5 | 73 | 4.5 | 336 |
100GDL72-28 | 3 | 72 | 84 | 2900 | 30 | 73 | 4.5 | 453 |
100GDL72-28 | 4 | 72 | 112 | 2900 | 37 | 73 | 4.5 | 582 |
100GDL72-28 | 5 | 72 | 140 | 2900 | 45 | 73 | 4.5 | 595 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
100GDL100-30 | 1 | 100 | 30 | 2900 | 18.5 | 73 | 4.5 | 336 |
100GDL100-30 | 2 | 100 | 60 | 2900 | 30 | 73 | 4.5 | 453 |
100GDL100-30 | 3 | 100 | 90 | 2900 | 37 | 73 | 4.5 | 493 |
100GDL100-30 | 4 | 100 | 120 | 2900 | 55 | 73 | 4.5 | 640 |
100GDL100-30 | 5 | 100 | 150 | 2900 | 75 | 73 | 4.5 | 840 |
100GDL100-30 | 6 | 100 | 180 | 2900 | 75 | 73 | 4.5 | 855 |
100GDL100-30 | 7 | 100 | 210 | 2900 | 90 | 73 | 4.5 | 870 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
125GDL100-20 | 2 | 108 | 40 | 2900 | 18.5 | 74 | 4.5 | 292 |
125GDL100-20 | 3 | 108 | 60 | 2900 | 30 | 74 | 4.5 | 430 |
125GDL100-20 | 4 | 108 | 80 | 2900 | 37 | 74 | 4.5 | 463 |
125GDL100-20 | 5 | 108 | 100 | 2900 | 45 | 74 | 4.5 | 555 |
125GDL100-20 | 6 | 108 | 120 | 2900 | 55 | 74 | 4.5 | 640 |
125GDL100-20 | 7 | 108 | 140 | 2900 | 75 | 74 | 4.5 | 840 |
125GDL100-20 | 8 | 108 | 160 | 2900 | 75 | 74 | 4.5 | 855 |
125GDL100-20 | 9 | 108 | 180 | 2900 | 90 | 74 | 4.5 | 870 |
125GDL100-20 | 10 | 108 | 200 | 2900 | 90 | 74 | 4.5 | 955 |
型號 | 級數 | 流量 | 揚程 | 轉速 | 電機功率 | 效率 | 必需汽蝕余量 | 重量 |
m3/h | M | r/min | kw | % | NPSH | KG | ||
125GDL100-30 | 1 | 100 | 30 | 2900 | 18.5 | 74 | 4.5 | 336 |
125GDL100-30 | 2 | 100 | 60 | 2900 | 30 | 74 | 4.5 | 453 |
125GDL100-30 | 3 | 100 | 90 | 2900 | 37 | 74 | 4.5 | 493 |
125GDL100-30 | 4 | 100 | 120 | 2900 | 55 | 74 | 4.5 | 640 |
125GDL100-30 | 5 | 100 | 150 | 2900 | 75 | 74 | 4.5 | 840 |
125GDL100-30 | 6 | 100 | 180 | 2900 | 75 | 74 | 4.5 | 855 |
125GDL100-30 | 7 | 100 | 210 | 2900 | 90 | 74 | 4.5 | 870 |
GDL型立式多級泵廣泛應用于高壓運行系統中冷熱清水的循環和增壓、高層建筑多臺泵并聯供水、消防、鍋爐給水和冷卻水系統及各種沖洗液的輸送等。
GDL型立式多級泵安裝尺寸
